HARO2019 : WESTLAKE-SG Slate (size 15.5")HARO2019 : WESTLAKE-SG Slate (size 15.5")HARO2019 : WESTLAKE-SG Slate (size 15.5")HARO2019 : WESTLAKE-SG Slate (size 15.5")HARO2019 : WESTLAKE-SG Slate (size 15.5")HARO2019 : WESTLAKE-SG Slate (size 15.5")

HARO2019 : WESTLAKE-SG Slate (size 15.5")


SPECIFICATIONS

Frameset

Frame

Haro Solum 6061 Alloy w/ Rider-Tuned Geometry, New Dropout

w/ Integrated Kickstand Mount

Fork

SR Suntour NEX HLO 63mm travel w/ hydraulic lockout

Colors

SG Slate

Drivetrain

Cranks

Shimano TY-501 48/38/28t,3x8-spd compatible

Pedals

VP nylon body w/ steel cages

Chain

KMC Z7 8-dpd

Bottom Bracket

Shimano sealed cartridge

Front Derailleur

Shimano Tourney FD-TY710, Top-Swing, Dual Pull

Rear Derailleur

Shimano Altus M310

Derailleur Shifter

Shimano ST-EF-510 3x8-spd set w/ levers

Freewheel/Cassette

Shimano HG-200 8-spd cassette 12-32T

Wheels

Tires

Kenda Kwick Bitumen 700x38c

Wheels/Rims

700c alloy double wall 28h

Braking System

Brakes

Shimano M315 hydraulic

Brake Levers

Shimano ST-EF-505 2-3 hydraulic, Set w/ shifters

Other Components

Grips

Haro Dual Sport

Handle Bar

Pivit alloy 25mm riser bar 31.8mm 9 degree sweep

Stem

Pivit melt forged stem

Headset

10-Pcs, 1-1/8" Threadless for 50mm OD headtube, Internal

Saddle

Haro Dual Sport

Seat Post

Pivit alloy micro adjust 27.2mm

Seat Clamp

Alloy quick Release, 31.8mm

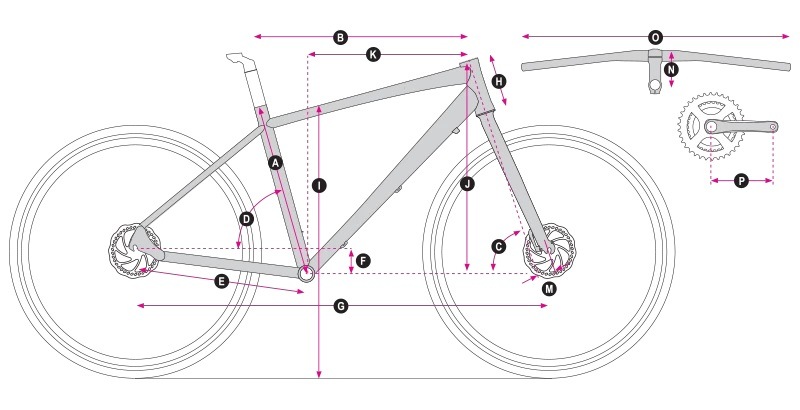

GEOMETRY
2019-Haro-Commuter-Westlake-Slate-Silver_Geo

SIZE

15.5

17.5

19

21

23

A. Seat Tube (C-T)

394

445

483

533

584

B. Top Tube (Effective)

575

585

600

615

625

C. Head Tube Angle

70.5

70.5

70.5

70.5

70.5

D. Seat Tube Angle

73

73

73

73

73

E. Chainstay Length

445

445

445

445

445

F. BB Drop

60

60

60

60

60

G. Wheelbase

1067

1076

1093

1108

1119

H. Head Tube Length

110

120

130

140

155

I. Standover

706

748

780

815

847

J. Stack Height

594

603

613

622

636

K. Reach

393

400

412

424

430

L. Fork Height

468

468

468

468

468

M. Fork Offset

42

42

42

42

42

N. Stem Length

70

90

90

100

100

O. Bar Width

620

620

640

640

640

P. Crank Length

170

170

175

175

175


      2019-Haro-MTB-Double-Peak-29-Trail_Sizechart
