BMC 20 : Teammachine SLR03 ONE (Size 51)

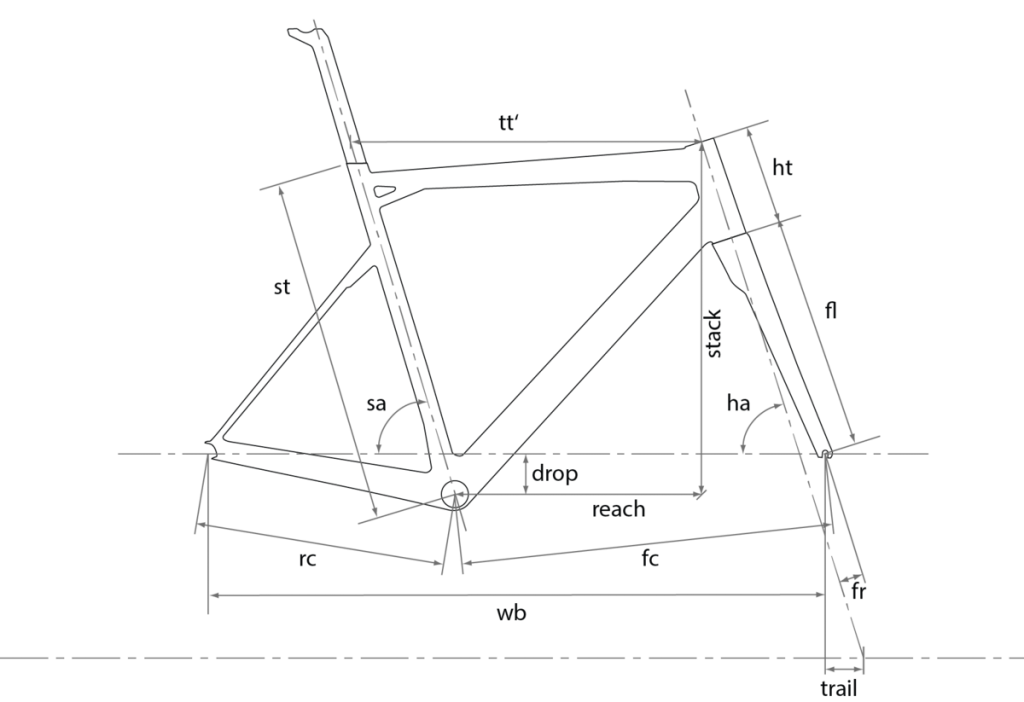

SIZE	47	51	54	57	60
Rider Height cm	<168	166-174	172-180	178-188	>186
Stack mm	506	530	550	571	601
Reach mm	370	378	387	394	405
Seat Tube st mm	442	505	535	565	600
Top tube tt' mm	520	535	550	564	583
Head tube ht mm	108	128	148	170	201
Seat Angle sa°	73.5	73.5	73.5	73.5	73.5
Head Angle ha°	70.5	72.5	72.5	72.5	72.5
Rear center rc mm	402	402	402	402	402
Front center fc mm	571	575	586	600	620
Wheelbase wb mm	963	967	978	992	1012
BB drop mm	69	69	69	69	69
Fork length fl mm	370	370	370	370	370
Fork rake fr mm	41.6	41.6	41.6	41.6	41.6
Trail mm	76	66	63	63	63
Crank lenght mm	170	170	172.5	172.5	175
Stem lenght mm	90	100	110	120	130
Stem angle°	+/- 6	+/- 6	+/- 6	+/- 6	+/- 6
Bar width mm	420	420	420	420	420
Bar drop  mm	125	125	125	125	125
Bar reach mm	70	70	70	70	70
Post lenght mm	350	350	350	350	350
Post offset mm	15	15	15	15	15
Standover height mm	707	754	779	809	836
