BMC : TEAMELITE 02 X1 GREY (Size S)

BMC : TEAMELITE 02 X1 GREY (Size S)

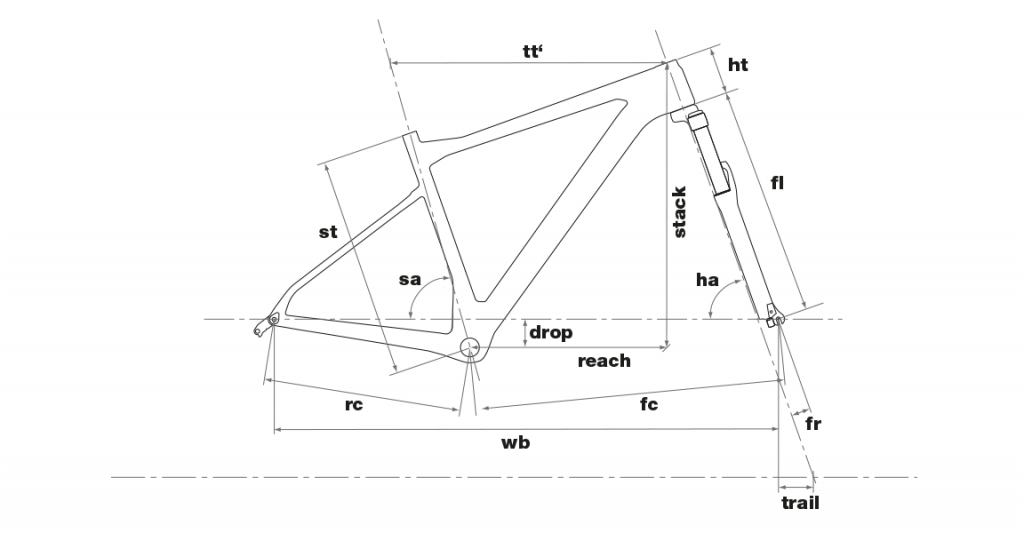

Size	XS	S	M	L	XL
Stack mm	599	608	618	628	638
Reach mm	377	401	426	442	458
Seat tube st mm	400	445	485	535	575
Top tube tt‘ mm	550	584	610	630	649
Head tube ht mm	90	90	100	110	120
Seat angle sa °	73.5	73.5	73.5	73.5	73.5
Head angle ha °	70	70	70	70	70
Rear center rc mm	429	429	429	429	429
Front center fc mm	625	659	685	706	725
Wheelbase wb mm	1046	1081	1107	1128	1146
BB drop mm	61	61	61	61	61
Fork length fl mm	486	506	506	506	506
Fork rake fr mm	51	51	51	51	51
Trail mm	80	80	80	80	80
Crank length mm	170	170	175	175	175
Stem length mm	70	70	70	70	70
Stem angle °	6	6	6	6	6
Bar width mm	720	720	720	720	720
Bar rise mm	4	4	4	4	4
Backsweep °	9	9	9	9	9
Post length mm	350	350	400	400	400
Stand over height mm	687	773	803	828	838
