BMC 20 : Roadmachine 01 FOUR (Size 51)

Specifications

Frame	Roadmachine, PF86 Bottom Bracket, Flat Mount, 12x142mm Thru axle
Tubing	Premium Carbon, TCC Endurance
Size	47 / 51 / 54 / 56 / 58 / 61
Fork	Roadmachine Premium Carbon, TCC Endurance, Integrated Cockpit, Flat Mount, 12x100mm Thru axle
Gear	2x11
Chainwheel	Shimano Ultegra, 50-34T
Cassette	Shimano Ultegra, 11-32T
Chain	Shimano Ultegra
Front Derailleur	Shimano Ultegra Di2
Rear Derailleur	Shimano Ultegra Di2
Shifter	Shimano Ultegra Di2, Hydraulic
Brake	Shimano Ultegra, SM-RT800 Rotors (160/140)
Handlebar	BMC RAB02, ergo top shape Cabon, compact bend
Stem	BMC ICS 01 - Integrated Cockpit Design, w/ computer and camera mount
Seatpost	Roadmachine D-Shape Carbon, 15mm offset
Seat	Fizik Aliante R5 Kium
Hubs	DT Swiss ERC 1650 Spline db 47 Carbon, Thru Axle
Rims	DT Swiss ERC 1650 Spline db 47 Carbon
Tyres	Vittoria Corsa Control, 28mm
Color Note	Carbon Red Tubeless Ready (Rim strip installed, valves included)

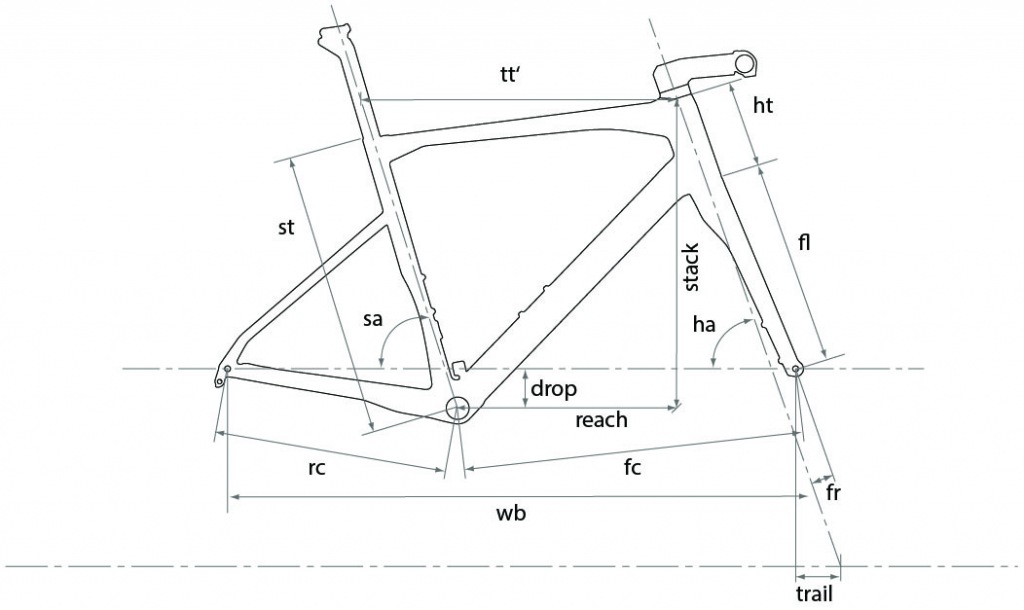

Geometry

SIZE	47	51	54	56	58	61
Rider height	<166	166-174	172-180	178-186	184-192	>190
Stack mm	516	541	562	586	610	644
Reach mm	374	382	386	390	394	398
Seat tube st mm	420	457	500	522	539	573
Top tube tt‘ mm	522	532	546	556	568	583
Head tube ht mm	112	139	156	181	206	242
Seat angle sa °	74.2	74.2	74.2	74.2	74.2	74.2
Head angle ha °	71.2	71.2	72	72	72	72
Rear center rc mm	410	410	410	410	410	410
Front center fc mm	583	599	597	609	621	635
Wheelbase wb mm	982	999	997	1008	1020	1035
BB drop mm	71	71	71	71	71	71
Fork length fl mm	375	375	375	375	375	375
Fork rake fr mm	50	50	50	50	50	50
Trail mm	63	63	63	63	63	63
Crank length mm	170	170	172.5	172.5	175	175
Stem length mm	90	90	100	110	120	120
Stem angle °	-12.5	-12.5	-12.5	-12.5	-12.5	-12.5
Bar width mm	400	420	420	420	440	440
Bar drop mm	125	125	125	125	125	125
Bar reach mm	70	70	70	70	70	70
Post length mm	331	381	381	381	381	381
Post offset mm	15	15	15	15	15	15

Know more

TCC Tuned - Compliance Concept

TCC คือเทคโนโลยีการออกแบบเฟรมให้เกิดความคงรูป และการให้ตัวในตำแหน่งที่เหมาะสม เพื่อ อ่านเพิ่ม..คลิก

กลับ

BMC 20 : Roadmachine 01 FOUR (Size 51)

Specifications

Frame

Roadmachine, PF86 Bottom Bracket, Flat Mount,

12x142mm Thru axle

Tubing

Premium Carbon, TCC Endurance

Size

47 / 51 / 54 / 56 / 58 / 61

Fork

Roadmachine Premium Carbon, TCC Endurance,

Integrated Cockpit, Flat Mount, 12x100mm Thru axle

Gear

2x11

Chainwheel

Shimano Ultegra, 50-34T

Cassette

Shimano Ultegra, 11-32T

Chain

Shimano Ultegra

Front Derailleur

Shimano Ultegra Di2

Rear Derailleur

Shimano Ultegra Di2

Shifter

Shimano Ultegra Di2, Hydraulic

Brake

Shimano Ultegra, SM-RT800 Rotors (160/140)

Handlebar

BMC RAB02, ergo top shape Cabon, compact bend

Stem

BMC ICS 01 - Integrated Cockpit Design, w/ computer

and camera mount

Seatpost

Roadmachine D-Shape Carbon, 15mm offset

Seat

Fizik Aliante R5 Kium

Hubs

DT Swiss ERC 1650 Spline db 47 Carbon, Thru Axle

Rims

DT Swiss ERC 1650 Spline db 47 Carbon

Tyres

Vittoria Corsa Control, 28mm

Color

Carbon Red

Geometry

Rider height

<166

166-174

172-180

178-186

184-192

>190

Stack mm

516

541

562

586

610

644

Reach mm

374

382

386

390

394

398

Seat tube st mm

420

457

500

522

539

573

Top tube tt‘ mm

522

532

546

556

568
