จักรยาน BMC : Teamelite 03 THREE (Size M)
Technical Details
Specifications
| Frame: | Teamelite 03 - Big Wheel Concept |
| Tubing: | Al-13 Premium Triple-butted, Hydroformed Aluminum |
| Size: | XS / S / M / L / XL |
| Fork: | RockShox 30 TK, Solo Air (100mm) |
| Rear Shock: | - |
| Gears: | 2x10 |
| Chainwheel: | Shimano FC-M617, 36-22T |
| Cassette: | Sunrace 11-36T |
| Chain: | KMC X-10 |
| Front Derailleur: | Shimano Deore |
| Rear Derailleur: | Shimano Deore |
| Shifter: | Shimano Deore |
| Brakes: | Shimano Deore (160/160mm)** |
| Handlebar: | BMC MFB 03, 720mm |
| Stem: | BMC MSM 03 |
| Seatpost: | BMC MSP 03 |
| Seat: | VL-1831 |
| Hubs: | Shimano Deore |
| Rims: | Alex MD25*** |
| Tyres: | Vittoria Barzo TNT, 29x2.1 |
| Colour: | Team Red |
| Infos: | **M size spec - rotor size adjusted for some sizes |

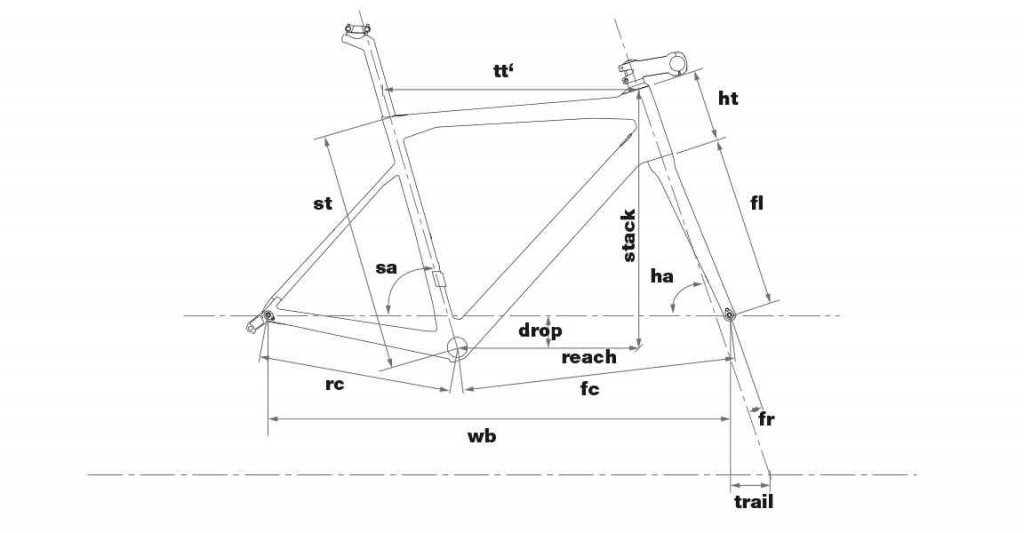

Geometry
| SIZE | XS | S | M | L | XL | |
| Stack mm | 599 | 608 | 618 | 628 | 638 | |
| Reach mm | 377 | 401 | 426 | 442 | 458 | |
| Seat tube st mm | 400 | 445 | 485 | 525 | 545 | |
| Top tube tt‘ mm | 550 | 584 | 610 | 630 | 649 | |
| Head tube ht mm | 90 | 90 | 100 | 110 | 120 | |
| Seat angle sa ° | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | |
| Head angle ha ° | 90 | 90 | 100 | 110 | 120 | |
| Rear center rc mm | 429 | 429 | 429 | 429 | 429 | |
| Front center fc mm | 625 | 659 | 685 | 706 | 725 | |
| Wheelbase wb mm | 1046 | 4081 | 1107 | 1128 | 1146 | |
| BB drop mm | 61 | 61 | 61 | 61 | 61 | |
| Fork length fl mm | 486 | 506 | 506 | 506 | 506 | |
| Fork rake fr mm | 51 | 51 | 51 | 51 | 51 | |
| Trail mm | 80 | 80 | 80 | 80 | 80 | |
| Crank length mm | 170 | 170 | 175 | 175 | 175 | |
| Stem length mm | 60 | 70 | 70 | 70 | 70 | |
| Stem angle ° | 6 | 6 | 6 | 6 | 6 | |
| Bar width mm | 720 | 720 | 720 | 720 | 740 | |
| Bar rise mm | 4 | 4 | 4 | 4 | 4 | |
| Backsweep ° | 9 | 9 | 9 | 9 | 9 | |
| Post length mm | 350 | 350 | 350 | 400 | 400 | |
| Stand over height mm | 687 | 773 | 803 | 828 | 838 |
