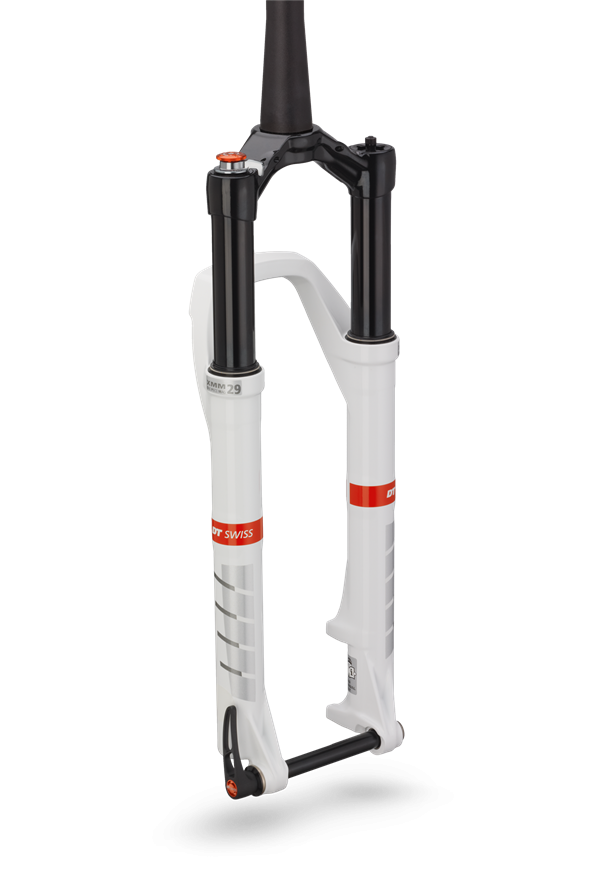

2014 : XMM 29 One Piece

Weight [g] : 1555

Travel : 100 mm

Dropout : 15 mm

Color : White / Black

Material lowers : One Piece Magnesium

Spring system : NCS

Damping system : Single Shot

Crown : Aluminium Black Painted

Steerer : Tapered 1.5" - 1 1/8" Aluminium

Steerer expander : Yes

Ride height (A) +/- 3 mm : 505

Fork offset (B) : 45 mm

Tire diameter max. (C) : 756 mm

Max. diameter (D) at tire width (E) : 733 mm

Max tire width (E) : 62 mm

Recommended system weight max. : 110 kg

Brake mount : PM6" max. 210 mm
