Frame | Teamelite 02 - Big Wheel Concept, PF92 Bottom Bracket, 12 x 142mm Thru-axle |
Tubing | 02 Carbon, Tuned Compliance Concept, DTi |
Size | XS / S / M / L / XL |
Fork | Rockshox Reba RL, Solo Air, Remote (100mm), 5x110mm thru-axle |
Handlebar | BMC MFB 02, 750mm |
Stem | BMC MSM 02 |
Seatpost | BMC MSP 02 |
Seat | Fizik Antares R7 |
Colour | Stealth |
Extras | ** Tubeless rim strip installed, valve included |
Infos | *M size spec - rotor size adjusted for some sizes |
Gears | 1x12 |
Chainwheel | SRAM NX Eagle 32T |
Cassette | SRAM NX Eagle 11-50T |
Chain | SRAM NX Eagle |
Front Derailleur | - |
Rear Derailleur | SRAM NX Eagle |
Shifter | SRAM NX Eagle |
Brakes | Shimano SLX (160/160mm) * |
Hubs | DT Swiss M1900 Spline |
Rims | DT Swiss M1900 Spline 25** |
Tyres | Vittoria Barzo TR, 29x2.25 |

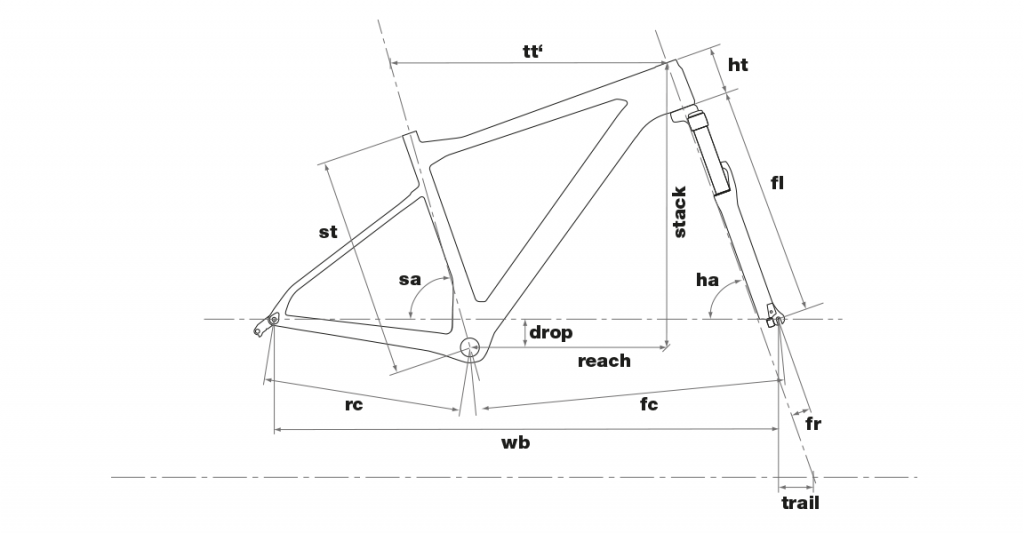

SIZE | XS | S | M | L | XL |
rider height | <165 | 162-172 | 170-180 | 178-188 | >188 |
Stack mm | 599 | 608 | 618 | 628 | 638 |
Reach mm | 377 | 401 | 426 | 442 | 458 |
Seat tube st mm | 400 | 445 | 485 | 525 | 545 |
Top tube tt‘ mm | 550 | 584 | 610 | 630 | 649 |
Head tube ht mm | 90 | 90 | 100 | 110 | 120 |
Seat angle sa ° | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
Head angle ha ° | 70 | 70 | 70 | 70 | 70 |
Rear center rc mm | 429 | 429 | 429 | 429 | 429 |
Front center fc mm | 625 | 659 | 685 | 706 | 725 |
Wheelbase wb mm | 1046 | 1081 | 1107 | 1128 | 1146 |
BB drop mm | 61 | 61 | 61 | 61 | 61 |
Fork length fl mm | 486 | 506 | 506 | 506 | 506 |
Fork rake fr mm | 51 | 51 | 51 | 51 | 51 |
Trail mm | 80 | 80 | 80 | 80 | 80 |
Crank length mm | 170 | 170 | 175 | 175 | 175 |
Stem length mm | 60 | 70 | 70 | 70 | 80 |
Stem angle ° | +/- 6 | +/- 6 | +/- 6 | +/- 6 | +/- 6 |
Bar width mm | 720 | 720 | 720 | 720 | 720 |
Bar rise mm | 4 | 4 | 4 | 4 | 4 |
Backsweep ° | 9° | 9° | 9° | 9° | 9° |
Post length mm | 350 | 350 | 350 | 400 | 400 |
Post offset mm | 0 | 0 | 0 | 0 | 0 |
Stand over height mm | 687 | 773 | 803 | 828 | 838 |
