Asymmetric Tube Design : รูปทรงท่อแบบอสมมาตรถูกออกแบบมาเพื่อสร้างความสมดุลในการขับขี่ และทนต่อแรงบิดตัวได้ดี
Specifications

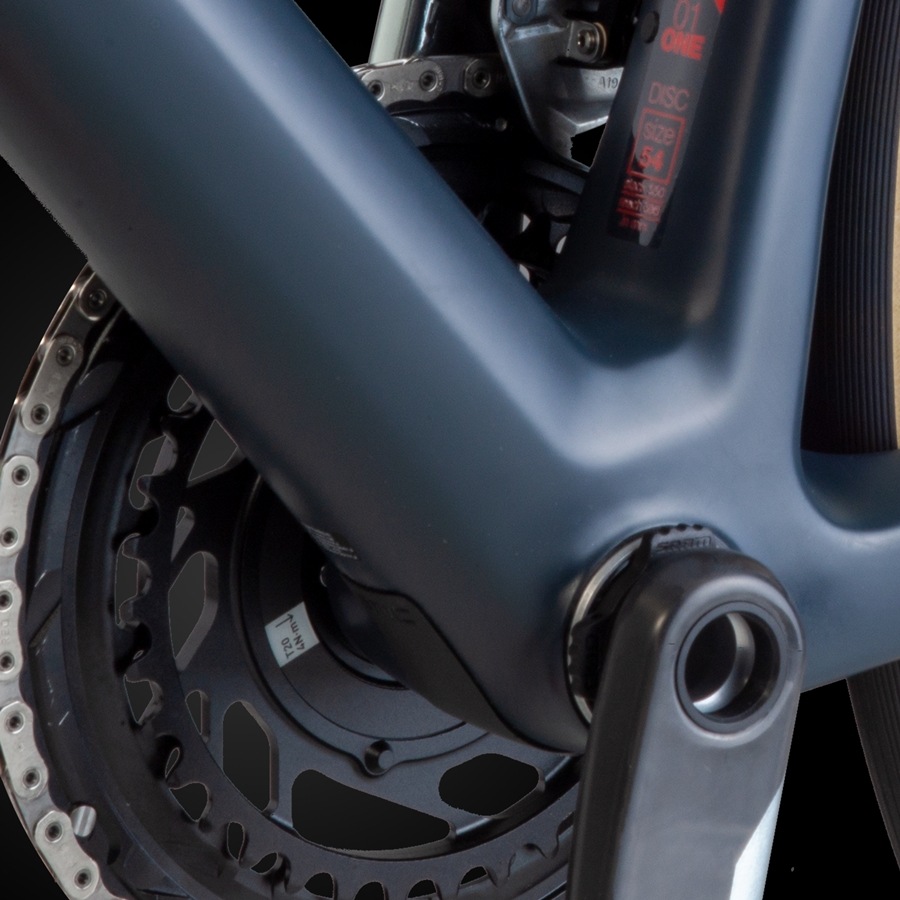

Frame | Teammachine SLR02, PF86 Bottom Bracket |
Tubing | 02 Carbon, ACE Technology, TCC Race |
Size | 47 / 51 / 54 / 56 / 58 / 61 |
Fork | Teammachine SLR02 Carbon, TCC Race |
Gear | 2x11 |
Chainwheel | Shimano 105, 50-34T |
Cassette | Shimano 105, 11-32T |
Chain | Shimano 105 |
Front Derailleur | Shimano 105 |
Rear Derailleur | Shimano 105 |
Shifter | Shimano 105 |
Brake | Shimano 105 |
Handlebar | BMC RAB 02, ergo top shape, compact bend |

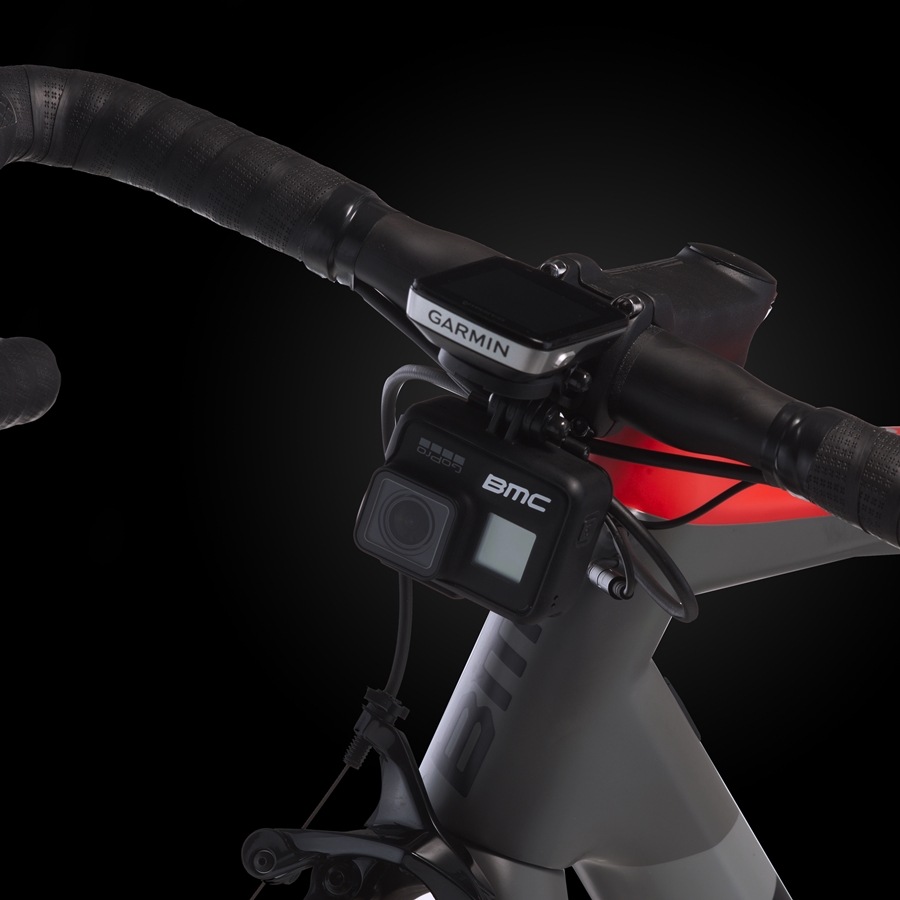

Stem | BMC RSM 01, w/ computer and camera mount |

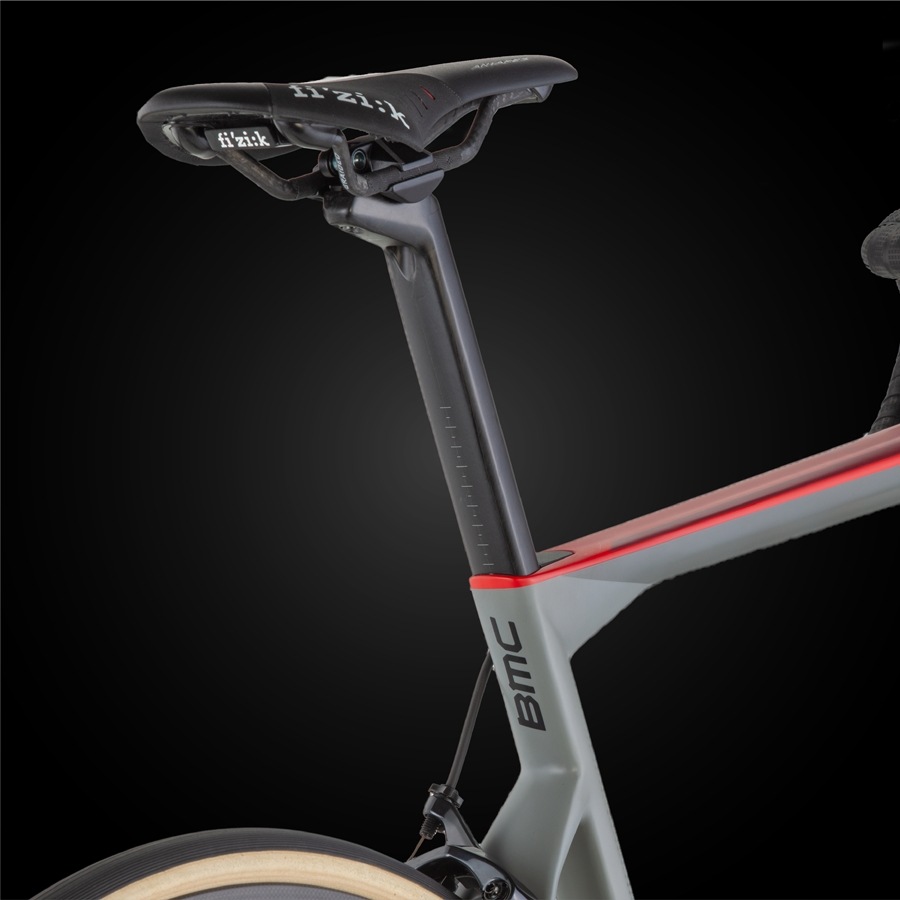

Seatpost | Teammachine SLR02 D-Shape Carbon, 15mm offset |
Seat | Fizik Antares R7, manganese |
Hubs | Mavic Aksium, Quick Release |
Rims | Mavic Aksium |
Tyres | Vittoria Rubino, 25mm |
ColorNote | Race Grey & Candy GreenTubeless Ready (Rim strip installed, valves included) |
Geometry
SIZE | 47 | 51 | 54 | 56 | 58 | 61 |
Rider Height Stack MM | <166 517 | 166-174 530 | 172-180 550 | 178-186 565 | 184-192 584 | >190 608 |
Reach MM | 367 | 377 | 386 | 392 | 401 | 409 |
Seat tube st mm | 423 | 468 | 513 | 534 | 554 | 584 |
Top tube tt' mm | 517 | 535 | 550 | 560 | 575 | 590 |
Head tube ht mm | 113 | 133 | 153 | 168 | 188 | 213 |
Seat angle sa | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
Head angle ha | 70.5 | 72.5 | 72.5 | 72.5 | 72.5 | 72.5 |
Rear center rc mm | 410 | 410 | 410 | 410 | 410 | 410 |
Front Center fc mm | 570 | 575 | 587 | 596 | 611 | 627 |
Wheelbase wb mm | 970 | 975 | 986 | 996 | 1012 | 1027 |
BB drop mm | 69 | 69 | 69 | 69 | 69 | 69 |
Fork lenght fl mm | 365 | 365 | 365 | 365 | 365 | 365 |
Fork rake fr mm | 41.6 | 41.6 | 41.6 | 41.6 | 41.6 | 41.6 |
Trial mm | 63 | 63 | 63 | 63 | 63 | 63 |
Crank lenght mm | 170 | 170 | 172.5 | 172.5 | 172.5 | 175 |
Stem lenght mm | 90 | 100 | 110 | 120 | 120 | 120 |
Stem angle | ± 8 | ± 8 | ± 8 | ± 8 | ± 8 | ± 8 |
Bar width mm | 400 | 420 | 420 | 420 | 440 | 440 |
Bar drop mm | 123 | 123 | 123 | 123 | 123 | 123 |
Bar reach mm | 77 | 77 | 77 | 77 | 77 | 77 |
Post lenght mm | 330 | 330 | 330 | 330 | 330 | 330 |
Post offset mm | 15 | 15 | 15 | 15 | 15 | 15 |
Standover Height mm | 726 | 754 | 779 | 797 | 814 | 843 |
